X-Panels

Panels for control systems in Boeing 737

Info:

Software for control systems in Boeing 737. You can use app on local or networked PC. App is writen for best compability with Zibo 737 but it also works with others 737 (Ultimate 737). Default 737 aren't fully compatible. Panels don't use any textures, graphic interface is writen with used vector graphics so panels are resolution independent and in any sizes will be looks good.
Remember: App is still in development and may have some bugs. If You saw some unusual behaviors write to me and send a logfile. Contact You may find on this page.

Feautures:

- works with: Zibo 737, Ultimate 737-900 (another 737 not tested, but if they're use the same DataRefs and commands it will be work)
- save and load separate panel positions in configuration files
- resolution independent (created with scalabe graphics)
- update checking
- no performance impact
- no required any plugins
- change panels background color
- implemented all Zibo 737 used functions for panel (unless I forgot something)
- up to 5 full configurable warning lights panels (from 1x1 to 13x13) 90% of warnings works (I can't find the others yet or not implemented)
X-Panels application

Boeing 737 panels:

- MCP: Mode Control Panel
- EFIS: Electronic Flight Instrument System Capt & FO
- FMC: Flight Management Computer (Captain & First officer)
- FMC LCD: only display from FMC (Captain & First officer)
- Master Warnings Capt & FO
- Display Units Selector Capt & FO
- VHF Radio
- Transponder
- EDCP: Engine Display Control Panel
- Landing gear lights
- Landing gear lever
- NAV panel Capt & FO
- ADF panel Capt & FO
- Overheat / Fire Protection Panel
- Warning lights (up to 5 configurable panels)
- Capt. brightness
- Background Flood
- Lights
- Fuel
- Bus transfer
... more in future
X-Panels, all avaible panels
All avaible panels

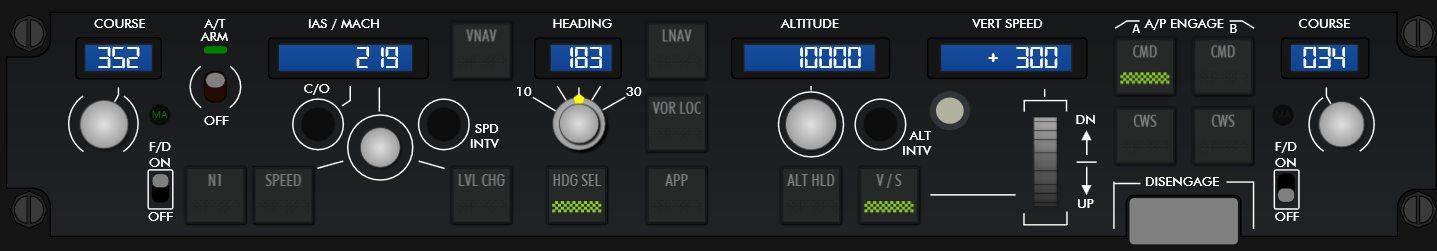

MCP - Mode Control Panel
Mode Control Panel
FMC - Flight Management Computer
FMC

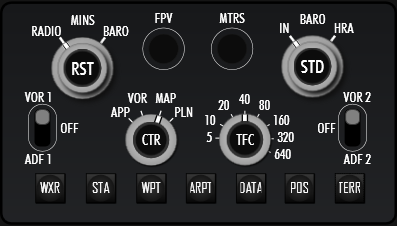

EFIS: - Electronic flight instrument system
EFIS
Display unit selector
DU Selector

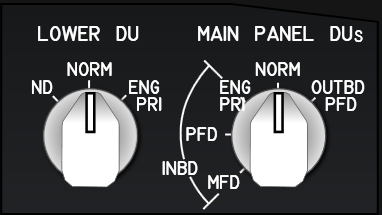

Display unit selector FO
DU Selector FO
Landing gear lights
Landing gear lights
Engine Display Control Panel
EDCP: Engine Display Control Panel
Autopilot / Autothrottle Indicator

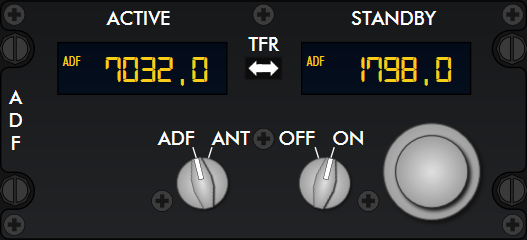

ADF Radio Panel
ADF Radio Panel

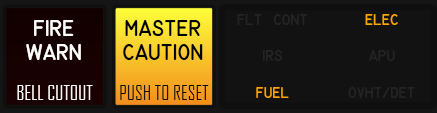

Master Warnings
Master Warnings

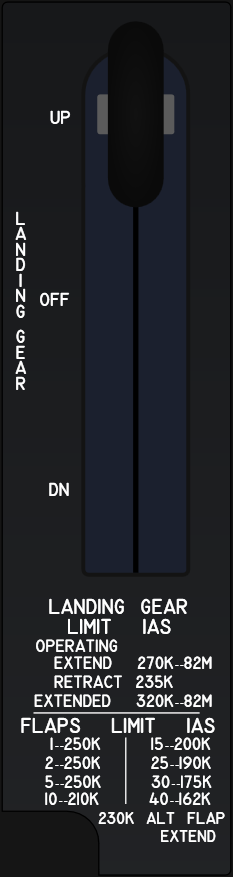

Landing gear lever
Landing gear lever

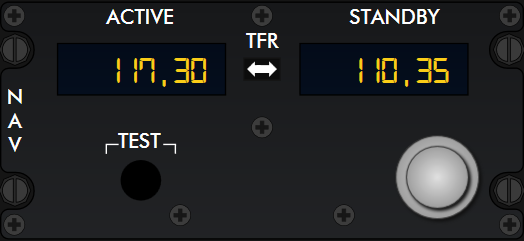

NAV Radio Panel
NAV Radio Panel
TCAS - Transponder
Transponder
VHF Radio
VHF Radio

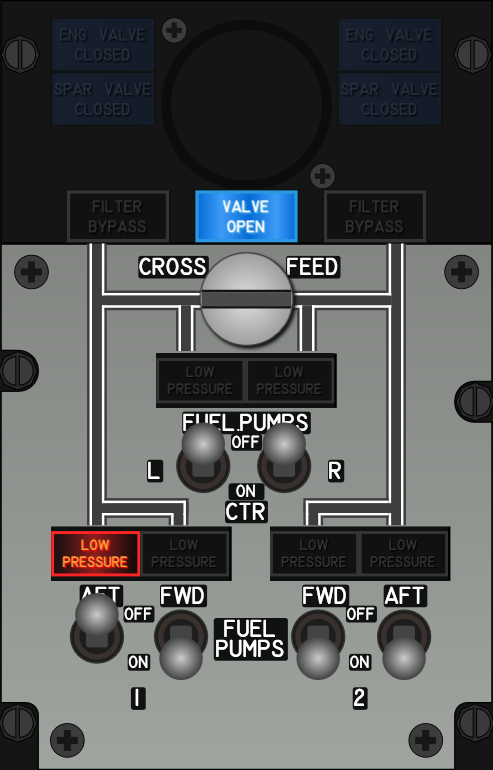

Fuel
Fuel

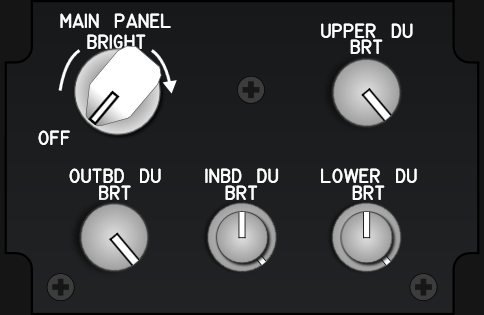

Cpt. brightness
Cpt. brightness

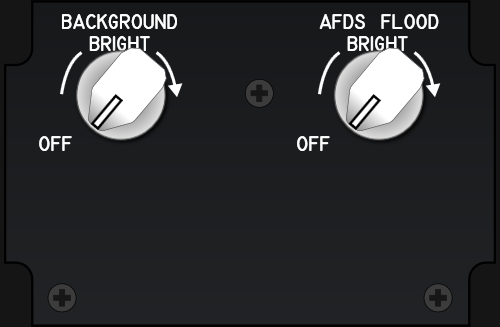

Background flood
Background flood

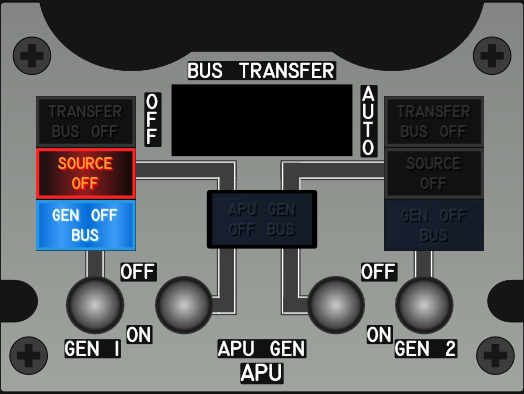

Bus transfer
Bus transfer
Lights

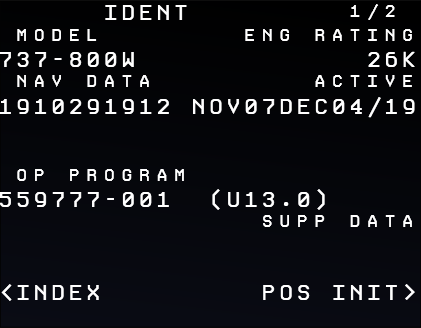

FMC Display
Lights
Lights

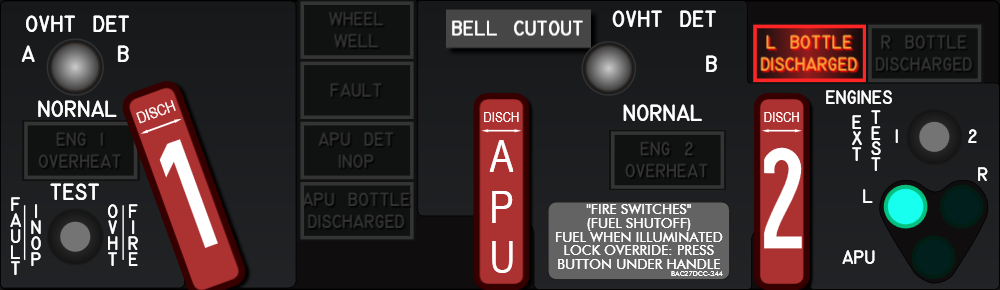

Overheat / Fire Protection Panel
Overheat / Fire Protection Panel

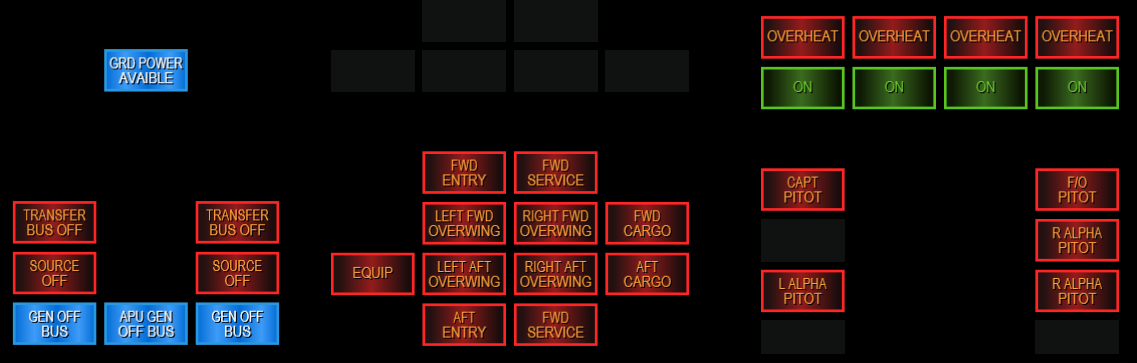

Warning lights custom panels
Warning lights custom panels

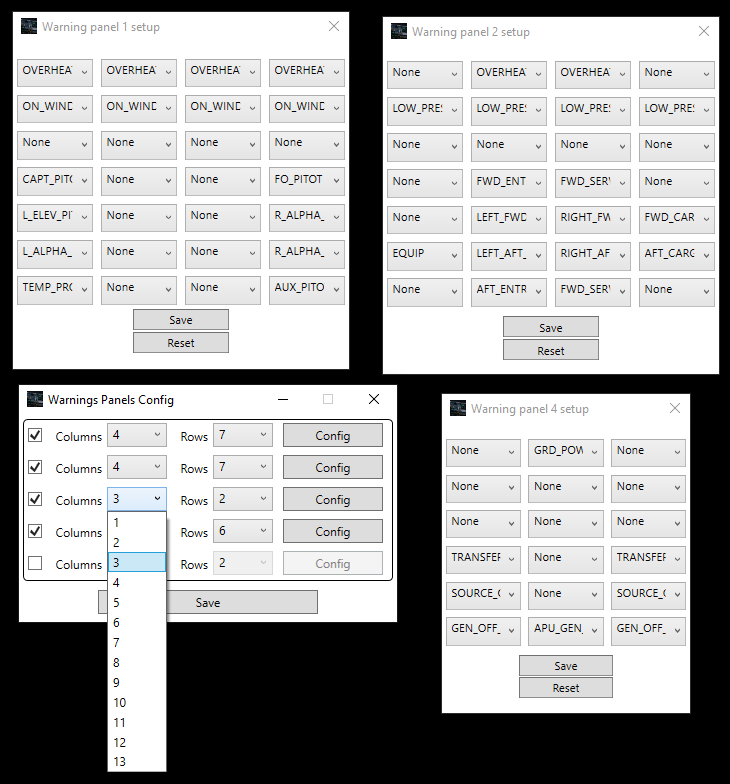

Warning lights custom panels configuration
Warning lights custom panels configuration

Plans for the future:

- Pneumatics
- AC & DC
- Ignition
- WXR if will be implemented
- and probably some others...

Video

Control Zibo 737 panels with X-Panels from networked PC

Photos

Few photos with working example

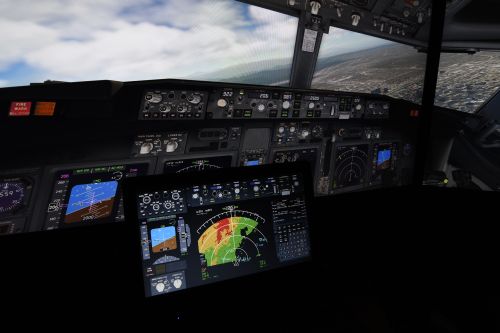

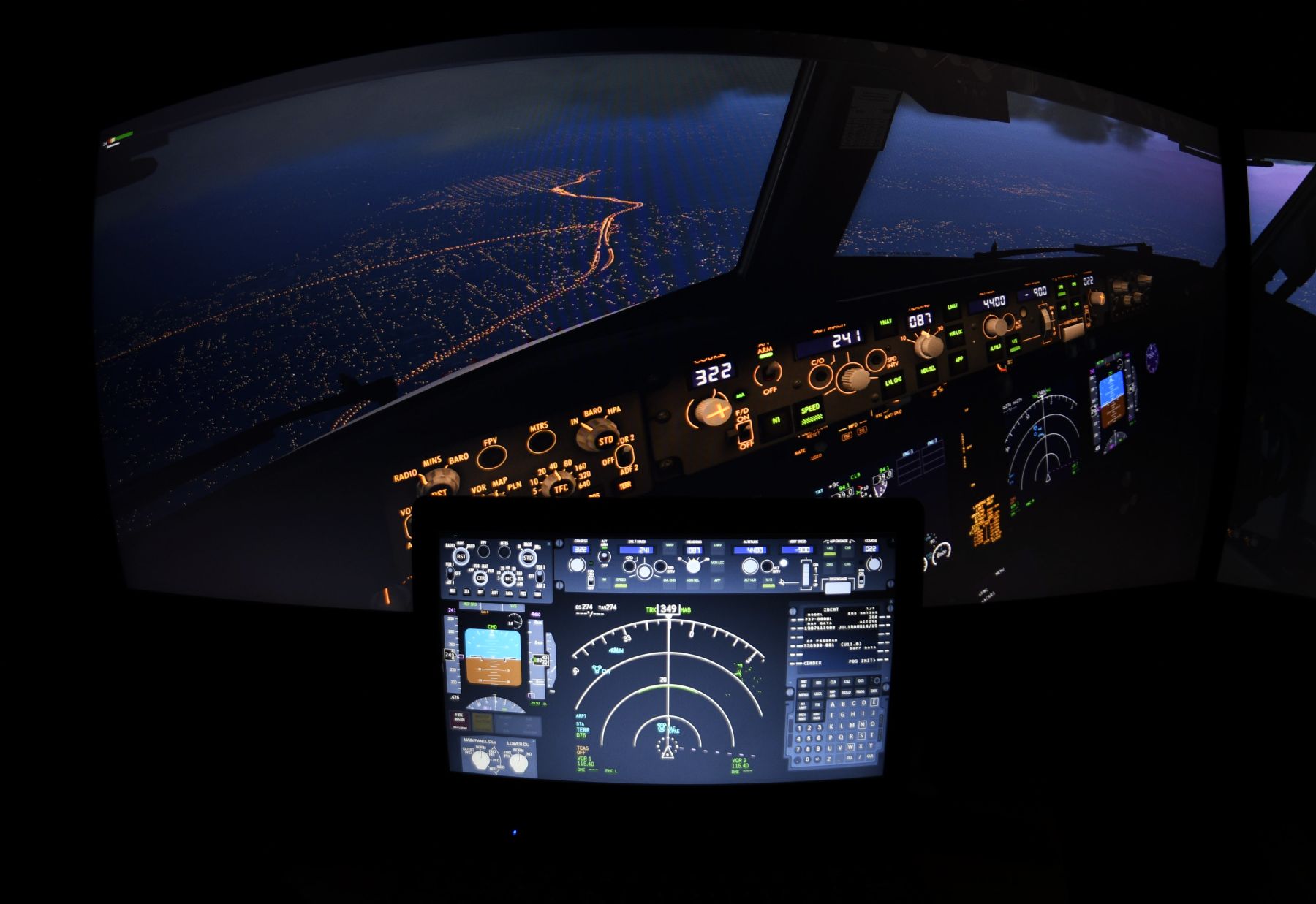

X-Plane with X-Panels and XHSI on networked PC X-Plane with X-Panels and XHSI on networked PC

FAQ

1
Do I need any plugin installed in X-Plane?
- No, this is standalone application, You need only allow connection in firewall
2
Does it affect X-Plane performance
- No, application doesn't affect performance in any way
3
How to update app
- Replace files in folder with newly downloaded
4
How to import settings to newer version?
- Go to: Settings > All panels and You have button to open folder with actual saved configuration, then copy user.config file to the new version folder in c:\Users\(Your username)\AppData\Local\pw-dev\X-Panels*\ or save Your configuration to "Config" folder in app and load (after upgrade)
5
Can be used with touchscreen monitors or laptops/tablets with Windows?
- Work with touchscreens but I not tested
6
The panel won't open
- Check panel position in settings
7
App don't receive data
- Check Your firewall settings

Examples:

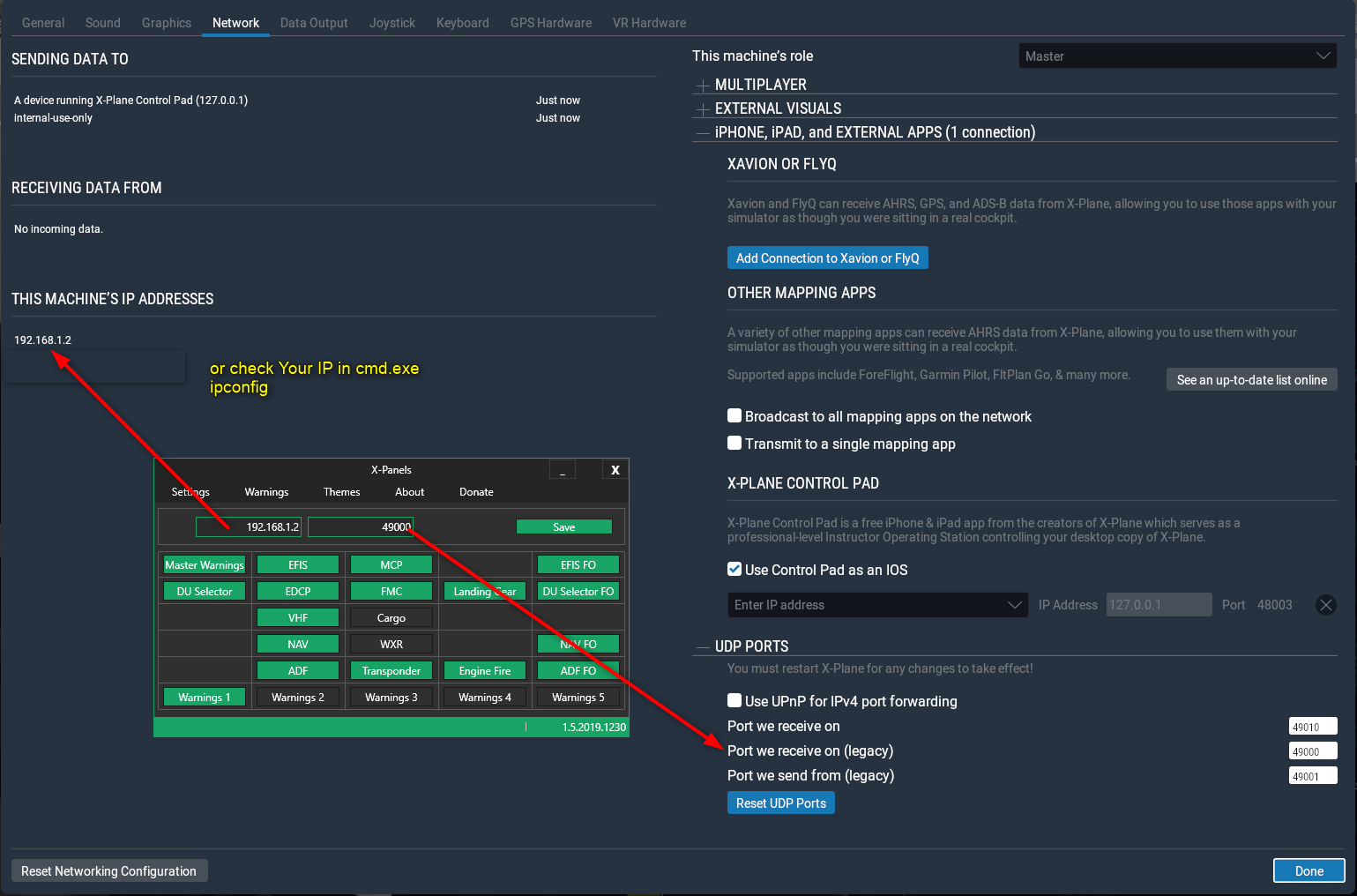

Connection setup
Connection setup
Examples for bigger screens

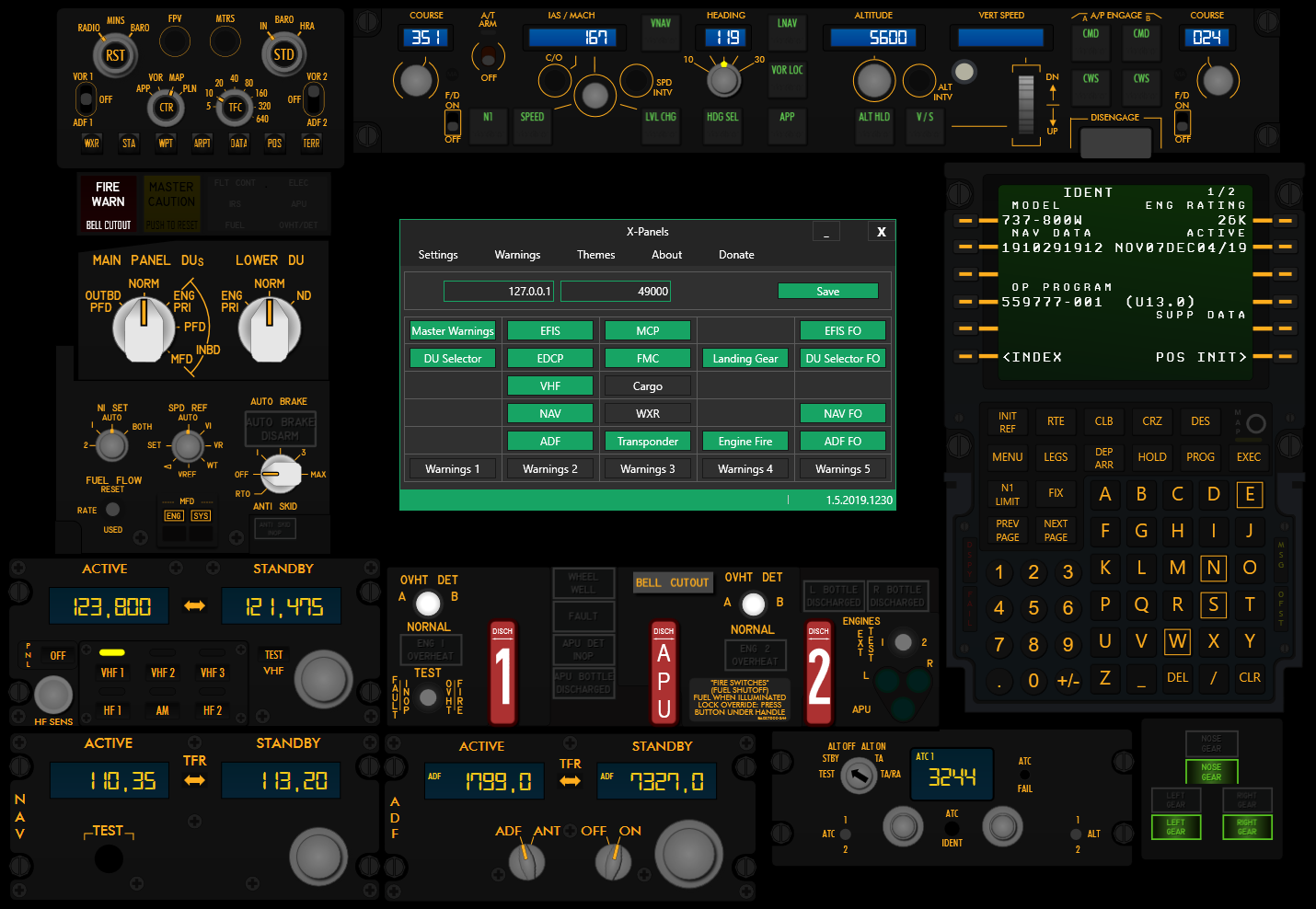

Night mode for all avaible panels
Night mode for all avaible panels

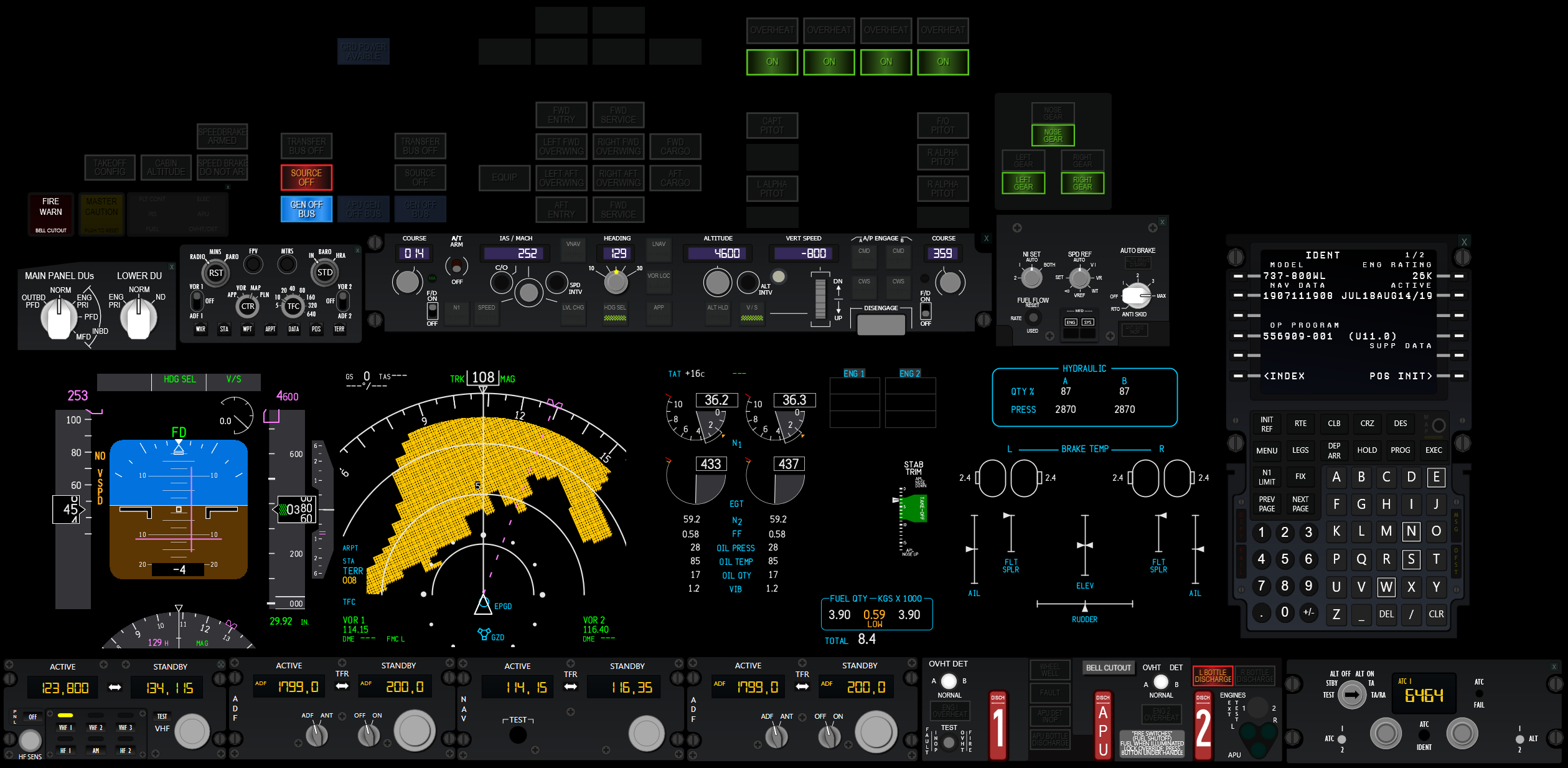

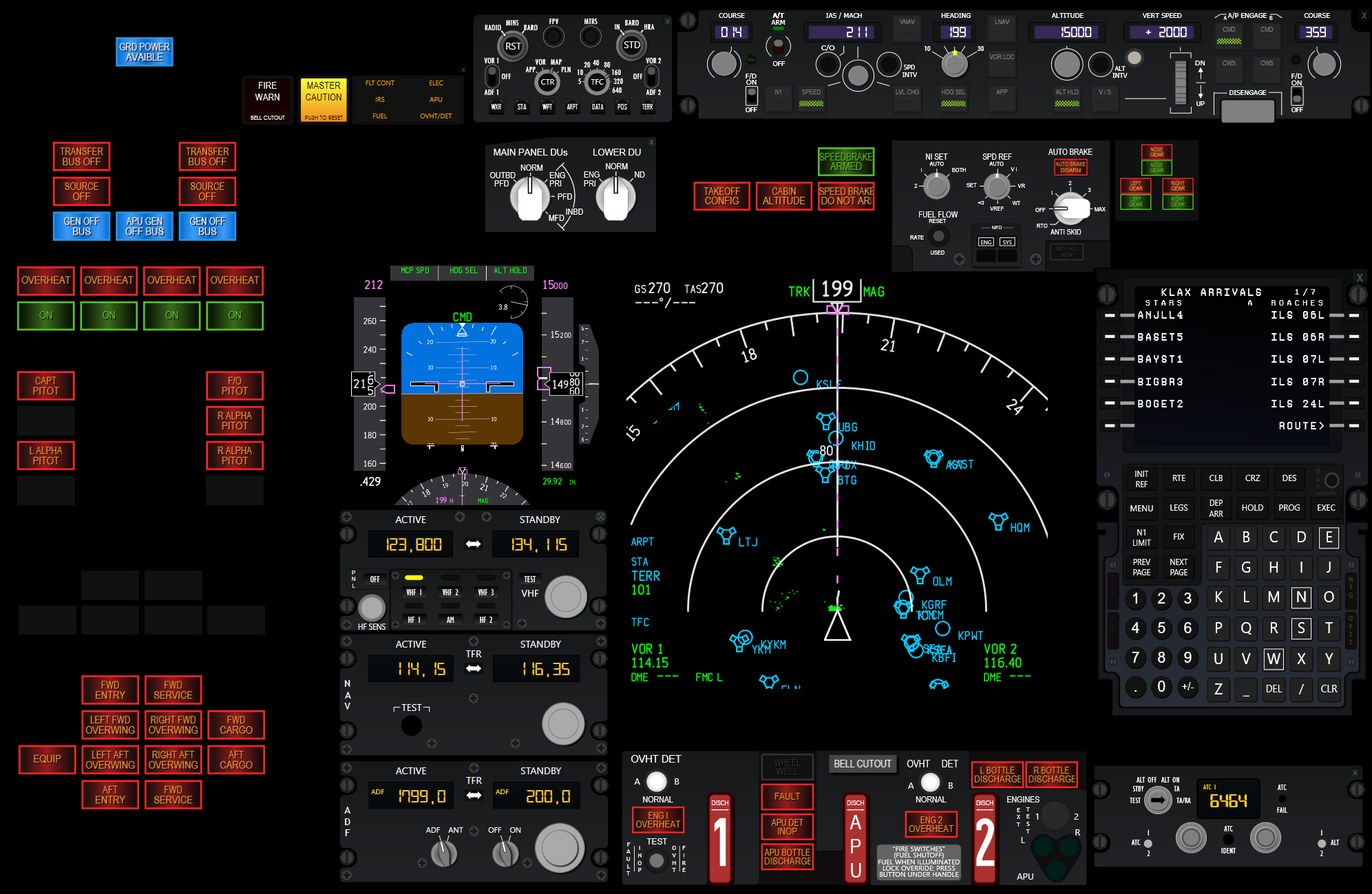

X-Panels with ZHSI
X-Panels with ZHSI
X-Panels with ZHSI
X-Panels with ZHSI
X-Panels with ZHSI
X-Panels with borders active
X-Panels with ZHSI
X-Panels with ZHSI
X-Panels with ZHSI
X-Panels with ZHSI

Some examples from my 10" netbook. Useful setups with another external apps like: ZHSI or XHSI

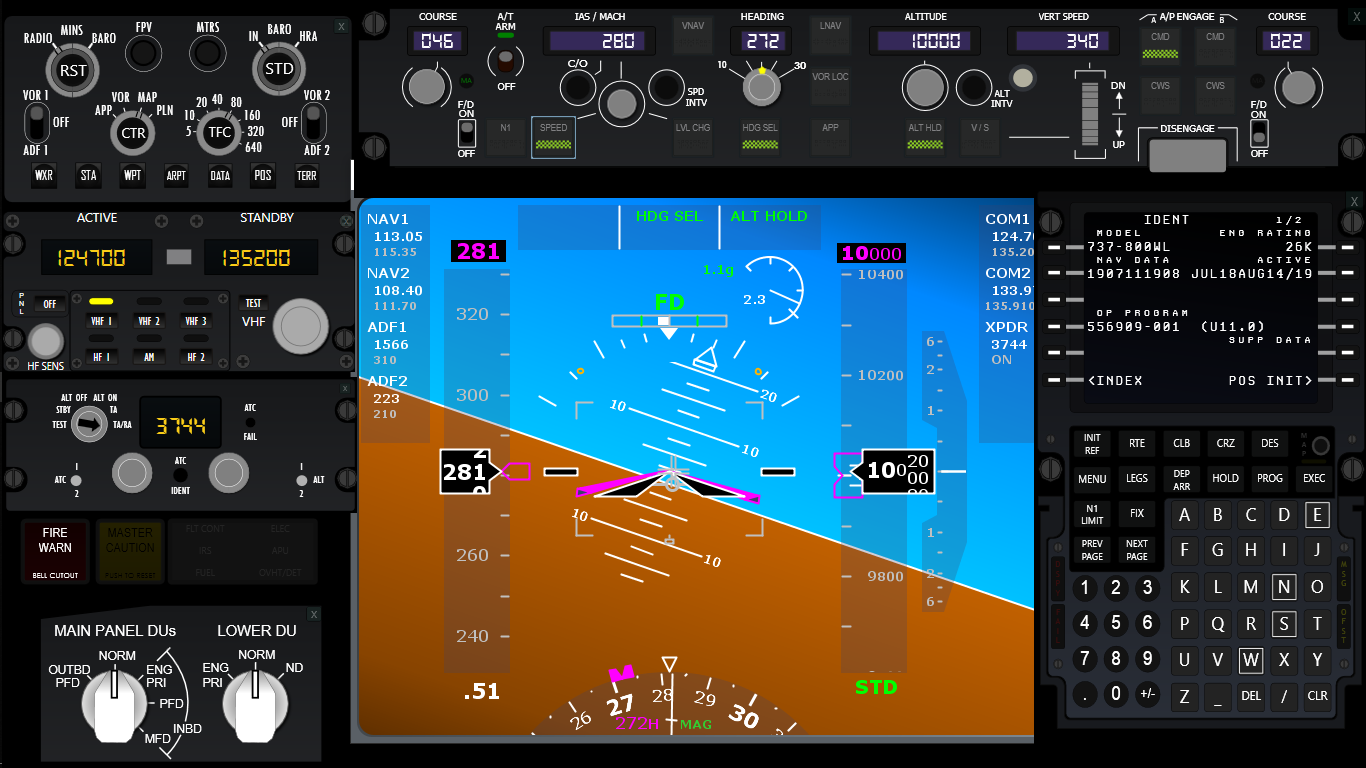

X-Panels: EFIS, MCP, VHF, Transponder, Cautions, DU Selector and FMC with XHSI
X-Panels: EFIS, MCP, VHF, Transponder, Cautions, DU Selector and FMC with XHSI

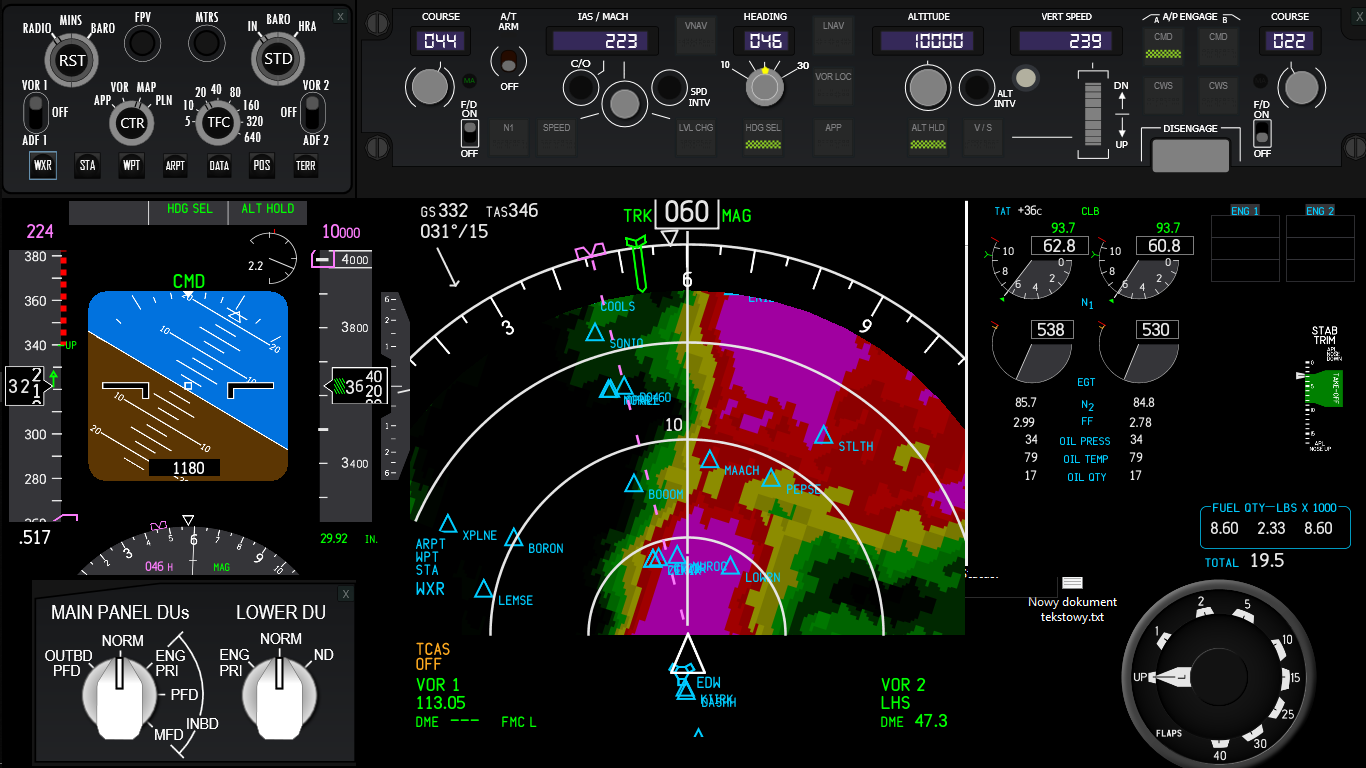

X-Panels: EFIS, MCP, DU selector with ZHSI
X-Panels: EFIS, MCP, DU selector with ZHSI

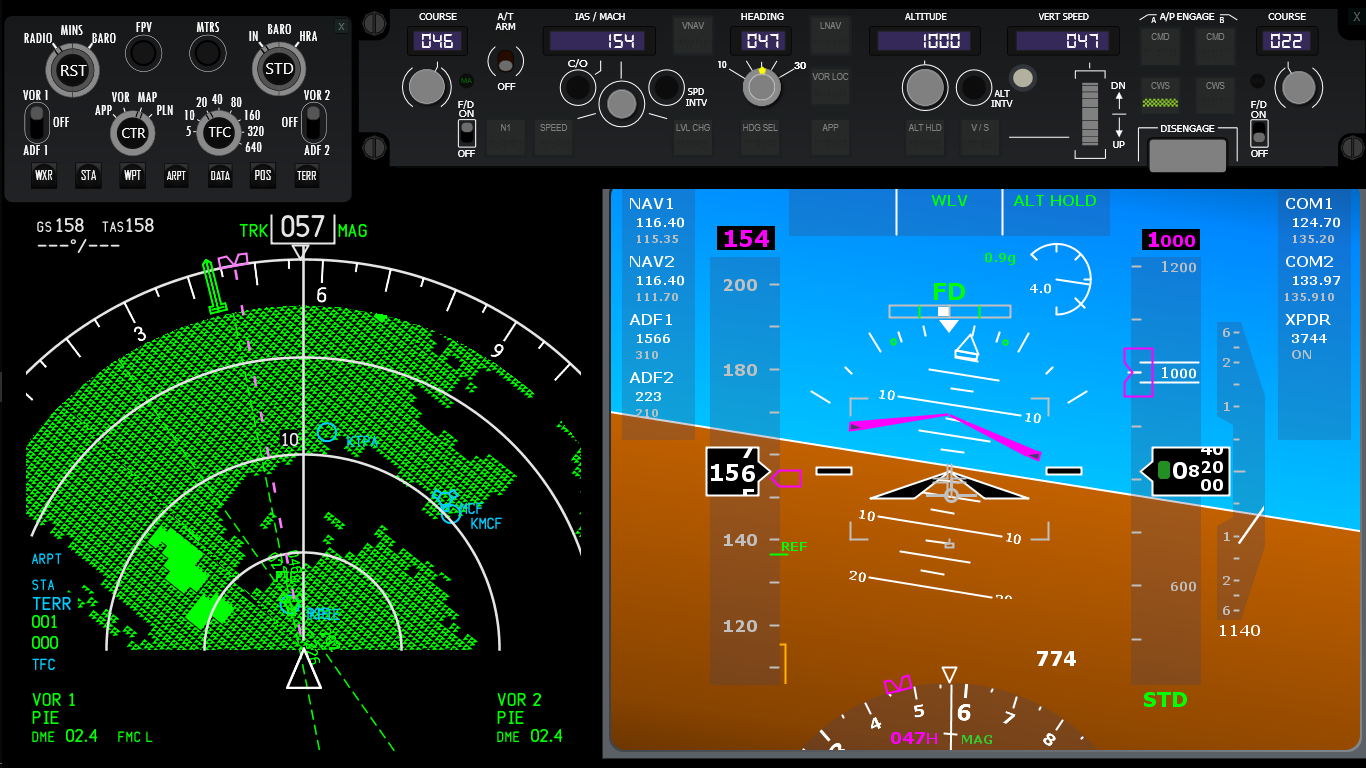

X-Panels: EFIS, MCP with XHSI + ZHSI
X-Panels: EFIS, MCP with XHSI + ZHSI

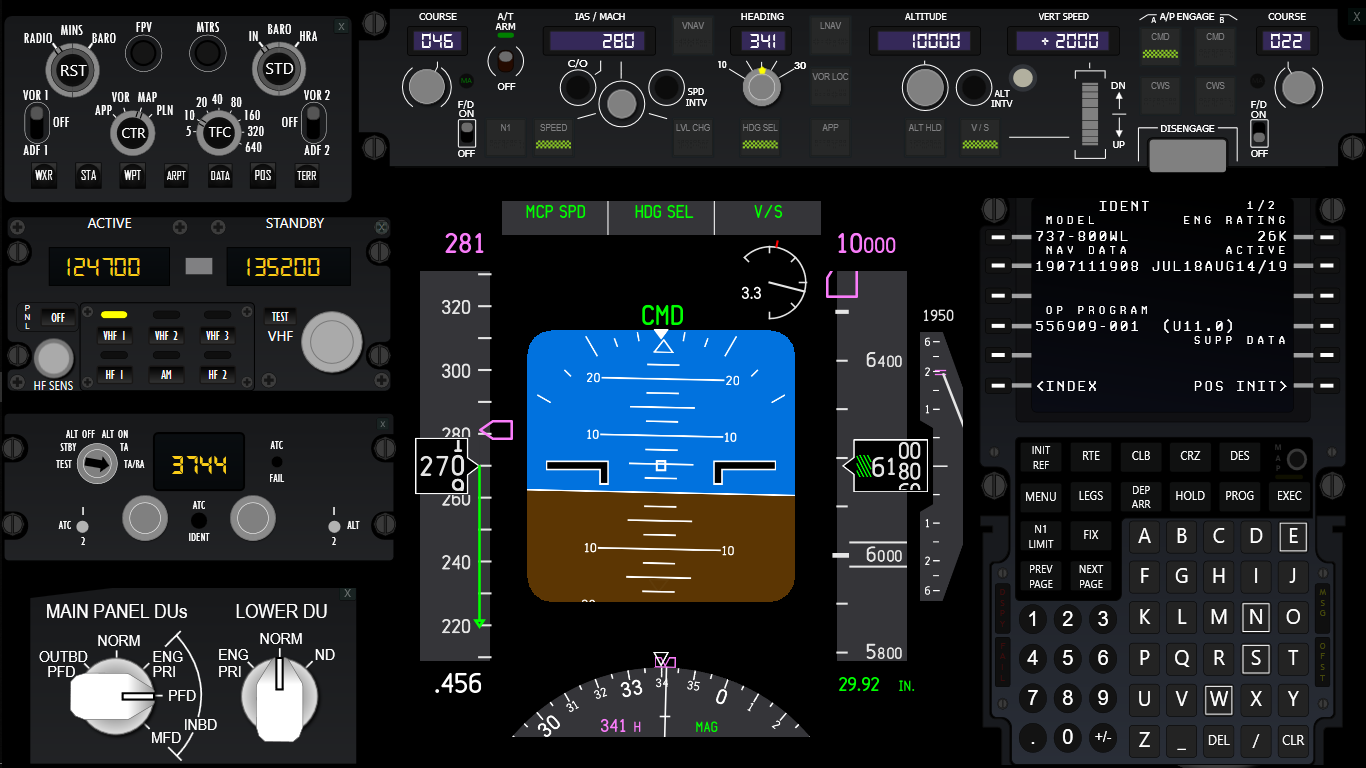

X-Panels: EFIS, MCP, VHF, Transponder, DU Selector and FMC with ZHSI
X-Panels: EFIS, MCP, VHF, Transponder, DU Selector and FMC with ZHSI

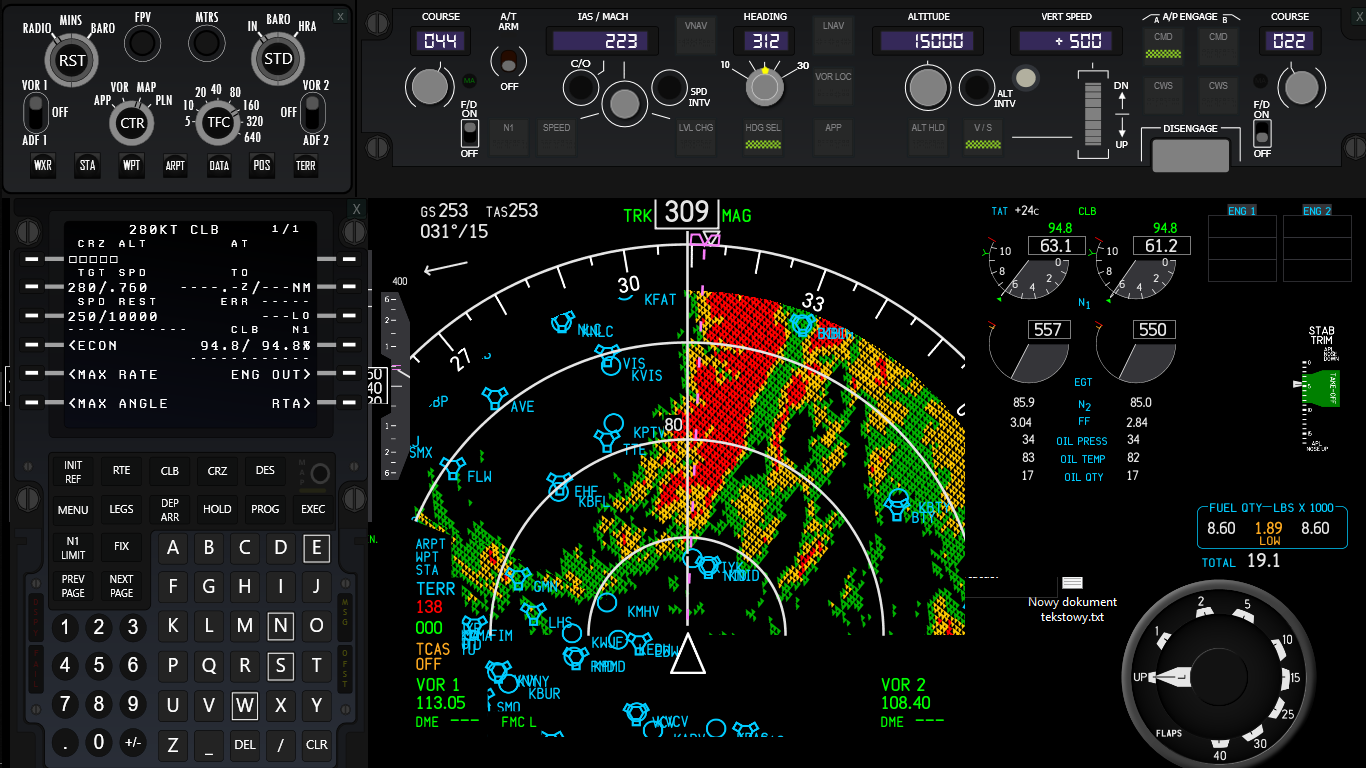

X-Panels: EFIS, MCP, FMC with ZHSI
X-Panels: EFIS, MCP, FMC with ZHSI
System requirements:
OS: Windows
Architecture: 64-bit
.NET Framework: 4.6.1
RAM Usage: -
Size: 4 MB
License: FREE
Version: 1.5.2020.0213
Release date: 2020-02-13

Like my app..? Help me and donate my work
Donate
